Tutorial 3, Part 6 – Dimensions
Pick here to see an online movie of Tutorial 3 Part 6
Dimensions to from the street to both the front door and drive through window need to be calculated to verify an eyewitness statement. This is easy to accomplish.
Adding Dimensions to the diagram
HANDY HINT: Entity snaps are critical to generating accurate dimensions. In this case the “Nearest” snap was active when generating dimensions:

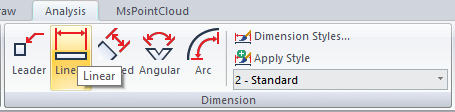

Change to your “Analysis” ribbon, and pick “Linear” from the Dimension group:

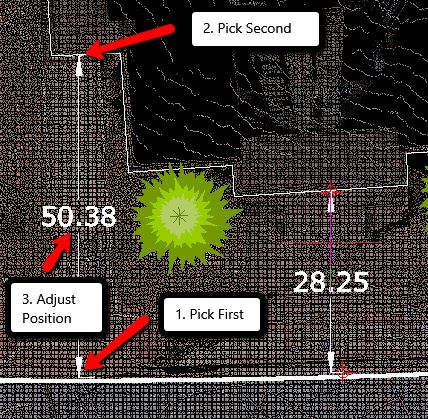

Insert two linear dimensions as shown below:
Experiment with adding other types of dimensions and using different dimension styles:
Save
Pick the "Save" button to save your work:
