Tutorial 3, Part 2b – Loading the Cyclone Database
Loading a Cyclone Database
Files for this exercise can be downloaded from the link below:
Save this file to your computer, right click and "extract all..." This is a large file so allow time for it to download.
You must have Leica GeoSystems Cyclone installed to proceed with this Tutorial
If required you can download it from here:
Download Cyclone from this Page
Save this file to your computer, right click and "extract all..."
Then install the program as a free viewer version.
Pick here to view an online movie of Tutorial 3 Part 2b

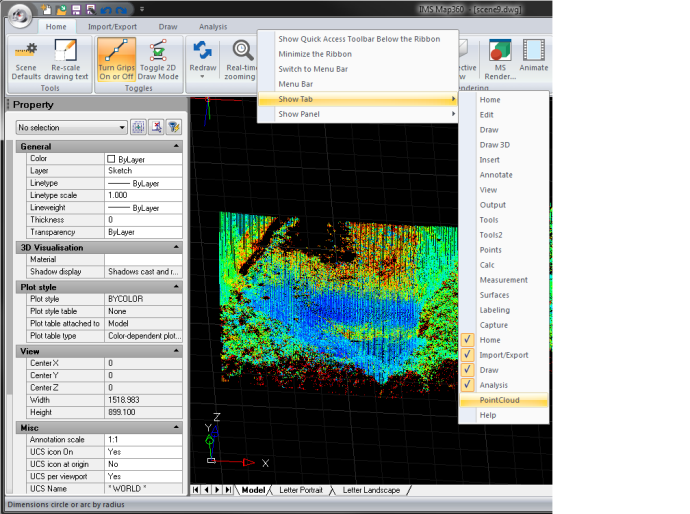

If you wish to continue using the Sketch workspace, add the PointCloud Ribbon to your current workspace so you can enable the Pointcloud tools:
Configuring a Cyclone Database
Select "Configure Databases" from the "Project" group of the MsPointcloud ribbon.

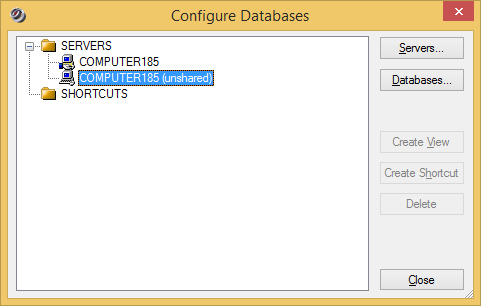

Select the (unshared) option:

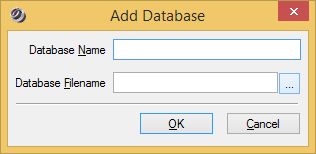

Pick on “Databases” and then Pick “Add”

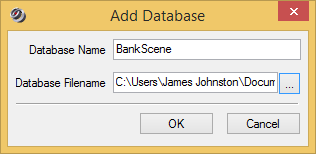

Pick the “…” and browse to the IMP file: Bank Scene – Cropped\BankScene.imp which you will have extracted from the sample data that was downloaded in step 1 of this tutorial.
Pick "Open" and "OK"
Pick "OK"

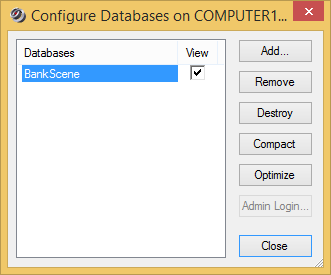

Note that your new database has now been added.:
Importing a Modelspace View:
Pick on “…” and browse to your newly created database:

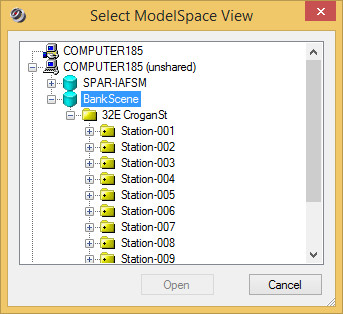

Drag the bar on the right further down to see the full tree:

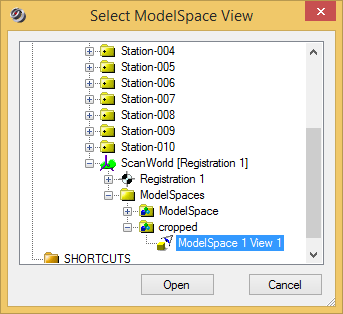

Select “ModelSpace 1 View 1 and pick "Open."

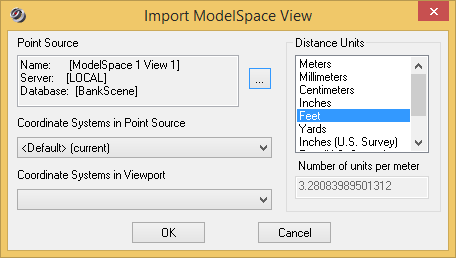

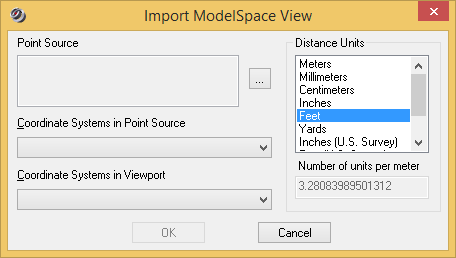

Set your units to feet and pick "OK"

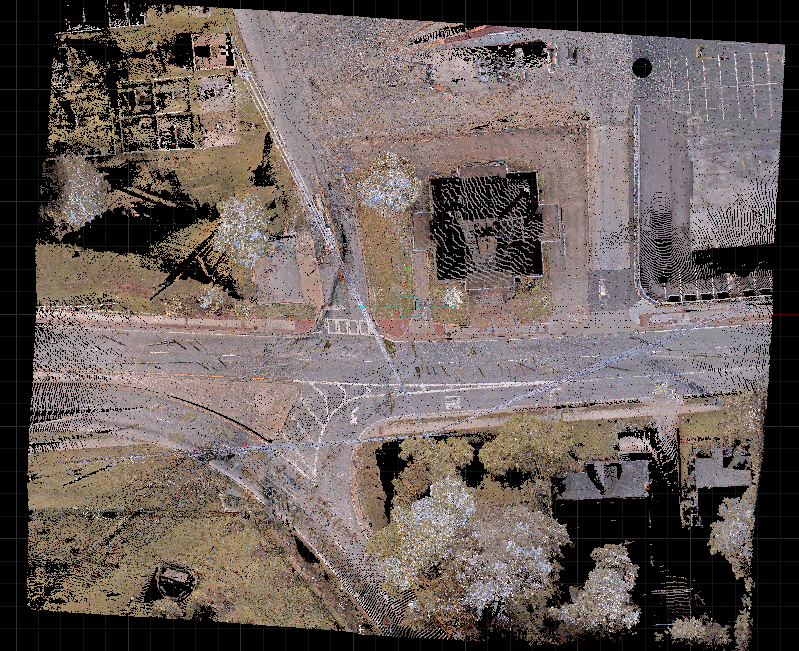

The final result.
Save
Pick the "Save" button to save your work:
