GNSS Reference Profile

Main Menu | Connect | Edit Profile

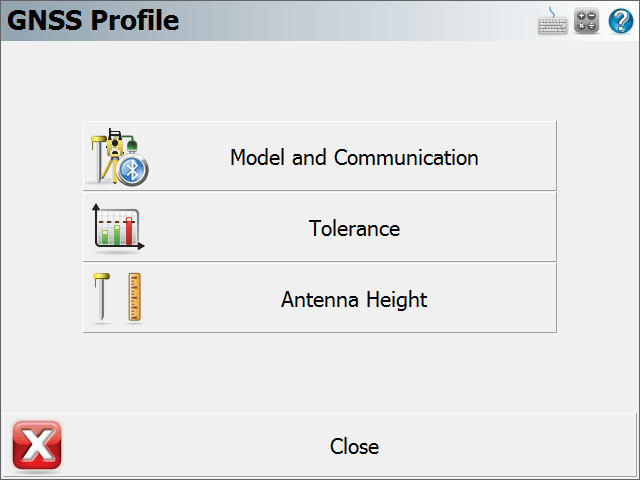

The GNSS Configuration for your reference unit is accessed from the Instrument Selection screen by selecting GNSS Reference as the Instrument Type, then pressing the Edit button to configure your selected GNSS Reference Profile.

Model and Communication

This is used to select the Make and Model of receiver, the port that the data collector is connected to and the mode that the current receiver will play in the RTK process. Please see the GNSS Model and Communication topic for more information.

Tolerance

This is used to enter information about the location of the reference (base) station. Please see the GNSS Tolerance (Reference) topic for more information.

Antenna Height

The antenna settings are used to calculate or enter the height of the antenna phase center above the ground. Please see the GNSS Antenna Configuration topic for more information.
