Local Transformation Point

This Measure Mode is designed to quickly add control points to a GNSS Local Transformation, using the Similarity method by matching up control points. The procedure is as follows:

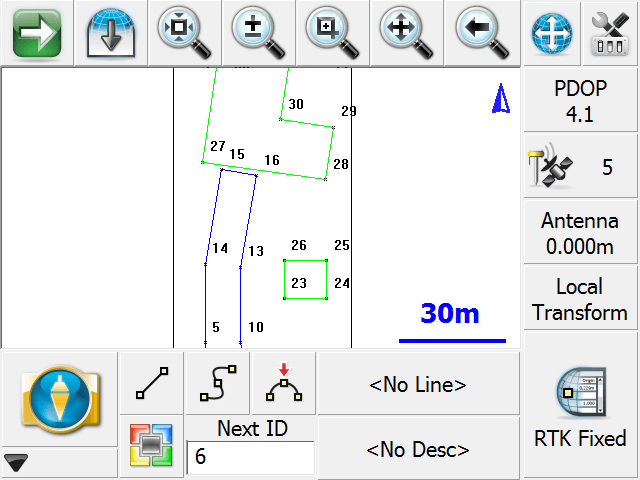

1. Set the Local Transformation Point Measure Mode:

2. Measure a control point that you wish to use for your localization. You will have the choice to store the observation as a point in the database:

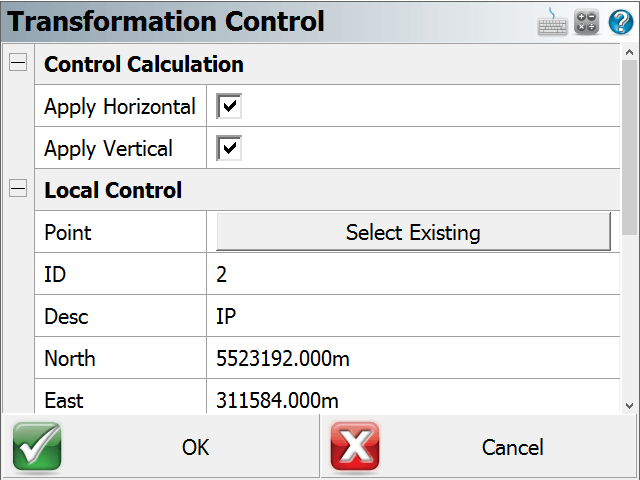

3. Specify whether the control point will be used for horizontal and/or vertical control, then pick Select Existing to set the local control point:

4. Optionally confirm the measured values for the GNSS Control Point:

5. Pick OK to accept the control pair.

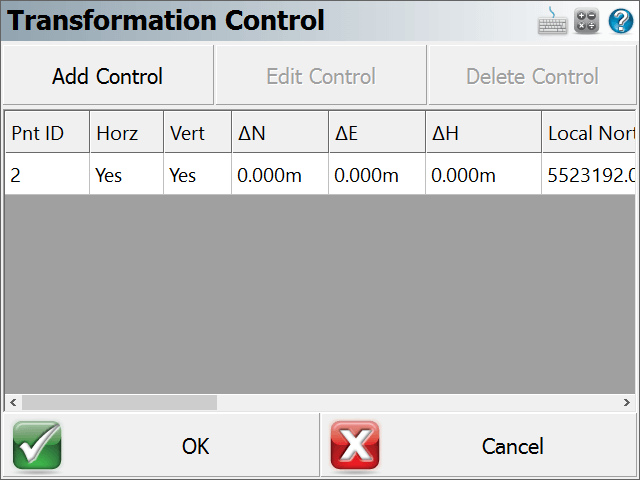

6. Pick OK on the Transformation Control screen:

7. Repeat Steps 2-6 for any additional control points.

8. Review and apply the transformation, please see the GNSS Local Transformation topic for more details.
