Sokkia SDR
Conversion:

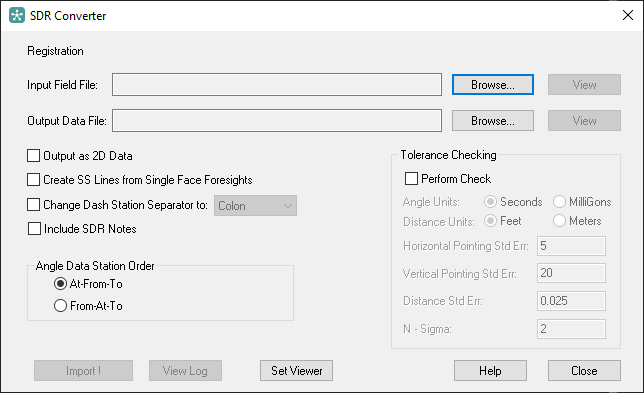

SDR Data Files (.SDR) or (.RAW) files can be imported using the SDR Converter.
You can also import an SDR file into MicroSurveyCAD via: MsTraverse | Read Collector Files in | Sokkia SDR33/Powerset/DXM or Sokkia SDR2/22/24. You can export any SDR traverse files directly from MicroSurvey CAD via: MsTraverse | Starnet Interface
Notes:
See here for further information from our help files.
See here for an article explaining data exchange between MicroSurvey CAD and STAR*NET.
We have learned from users that it is necessary to re-measure an initial backsight as a sideshot in order to allow MicroSurveyCAD to interpret SDR files correctly.
Users may need to manually define initial backsight values of SDR files in STAR*NET
