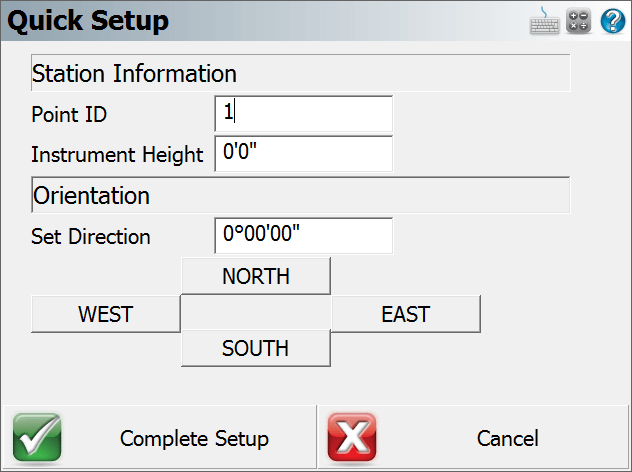

Quick Setup

Main Menu or Instrument Toolbar | Measure Modes | Setup & Check | Quick Setup

This setup procedure requires a Point and a direction to complete the setup.

Point ID

Enter a Point ID to set the Station, or tap in the field to open a menu to pick a point from a list or map, or create a new point.

Instrument Height

Enter the height of the device above ground if you wish to reference it.

Set Direction

Enter the direction that the device is pointing, or pick on one of the four direction buttons to set the direction.

Complete Setup

Pick Complete Setup to finish. The direction will be captured and set as the orientation reference.
