New Figure

Pre-selection of Line Descriptions

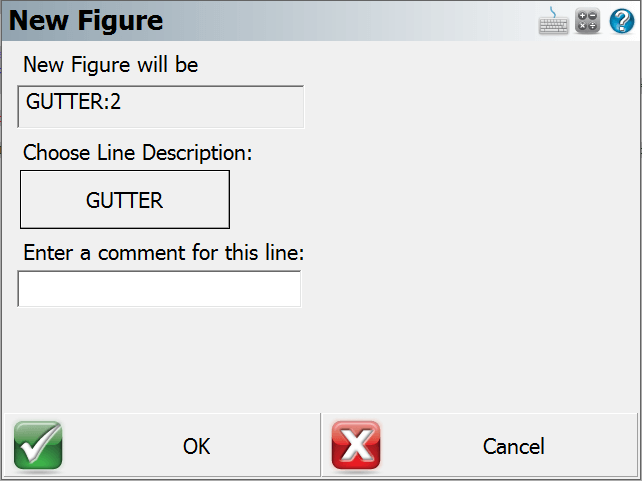

A list of Active Lines (Figures) may be pre-specified to aid in planning for a complicated Project. Use the New Figure button on the Active Line List screen to specify a Line Description before taking any shots.

You have the opportunity to use a manually entered comment with this method but the new line will be linked to the selected Line Description. The comment will appear in the Active Lines list to aid correct selection of the line.
