Auto Record Points

Main Menu or GNSS Toolbar | Measure Mode | Auto Record Points

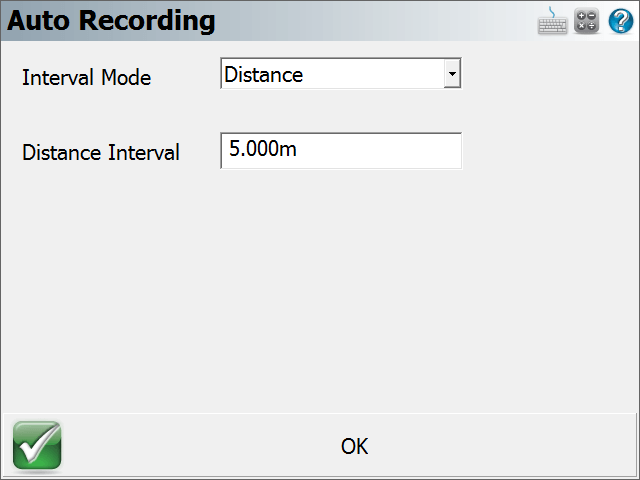

The Auto Recording settings are used when collecting GNSS data in a "Kinematic" mode. The receiver can automatically log a point every X distance or Y seconds. The user simply selects what option they prefer to use for logging Kinematic data and start the survey. Keep in mind while collecting data at higher velocities that FieldGenius receives position updates from the GNSS at a maximum rate of once per second.

Once configured, Auto-Recording is activated on the Rover Measure Mode screen after pressing the Measure button:

Once activated, Auto-Recording is deactivated by pressing the Measure button again.
